Large Laser Engraving Cutting Machine
Large Laser Engraving Cutting Machine

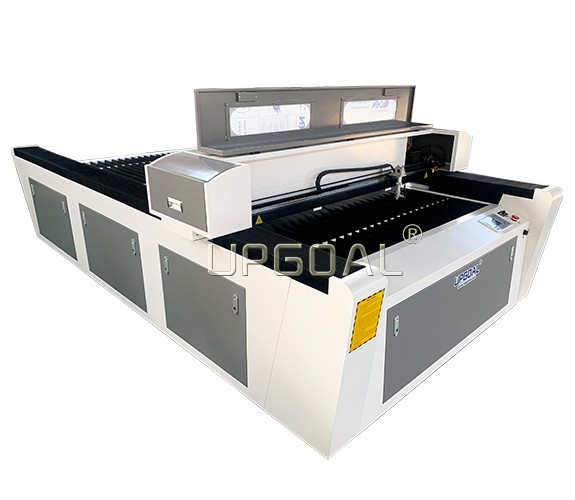

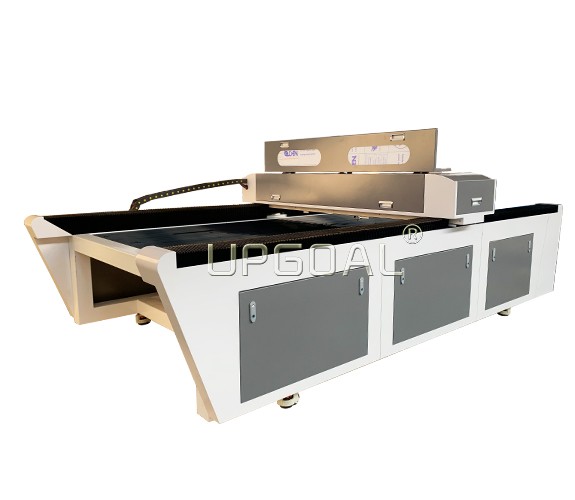

Large 1500*2500mm Acrylic Co2 Laser Cutting Machine 100W

Brief Introduction:

Model: UG-1525L
1500*2500mm working area
Reci W4 100W Co2 laser tube

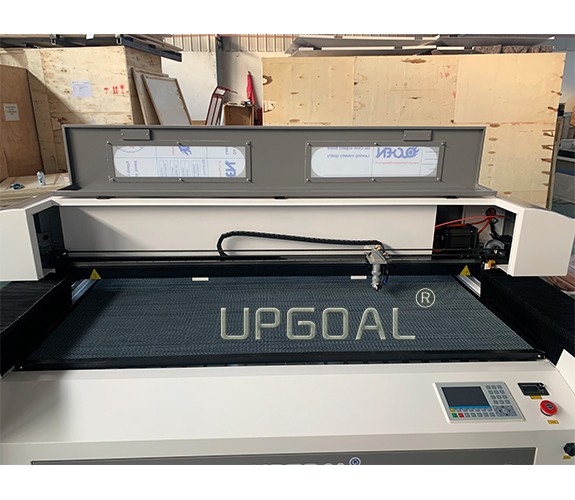

Knife strip and honey comb double working table
CW-5200 industrial chiller
RuiDa 6445S controller

INQUIRY NOW

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

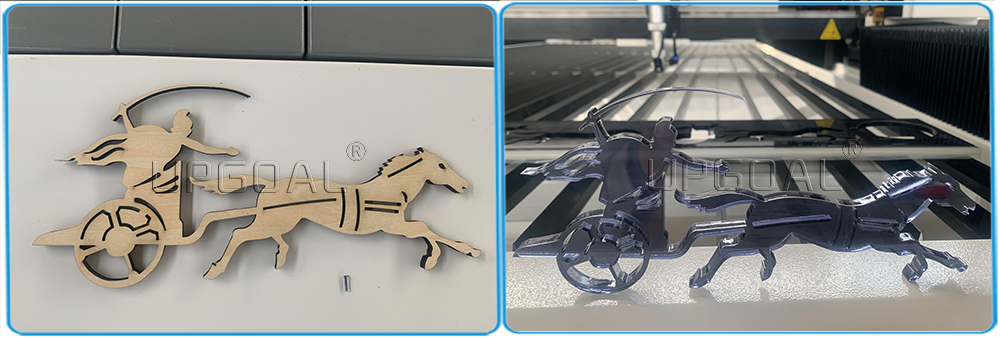

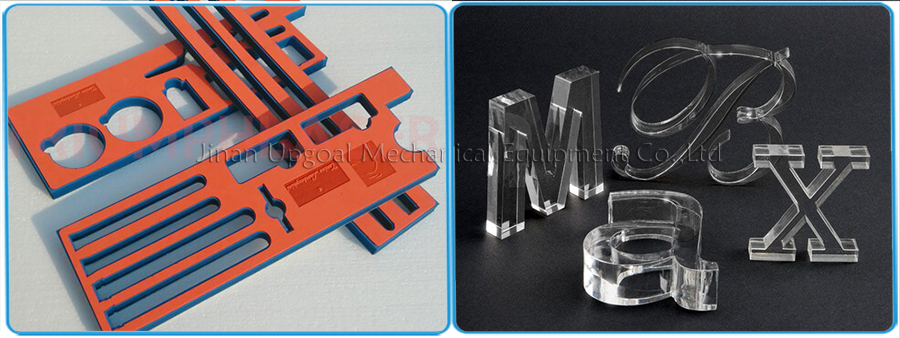

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc.

Materials can Work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


Features

Laser Head with infrared red dot positioning

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

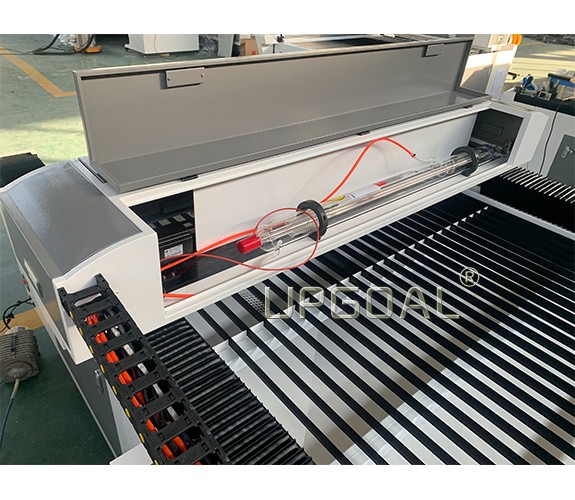

Laser Tube

Adopted high quality Reci brand W4 100W  Co2 laser tube,  long working time time and stable

Working Table

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M beltensured stable transmission, lower noise

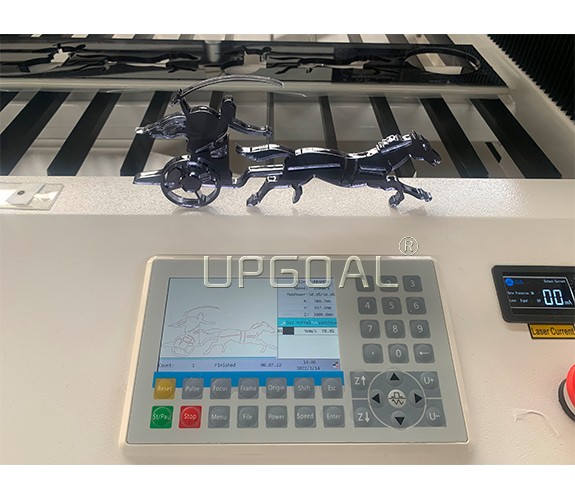

Operation System

Advanced USB port  RuiDa 6445s control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5200(Teyu S&A), ensuring the laser tube long time continuous working.


Effective working area

1500*2500mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

100W, Reci W4 model

Working table

Knife strip and honey comb, double working table

Driver mode

3 phases stepper motor and Driver, Leadshine brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa 6445S

Control software

RDWorksV8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-5200 cooling(Teyu S&A)

Water protection system

Yes

Blow-off system

Air pump and air blower

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc

Voltage

AC220V/110V, 50/60Hz, single phase

Certificate

CE/FDA
